1. Overview

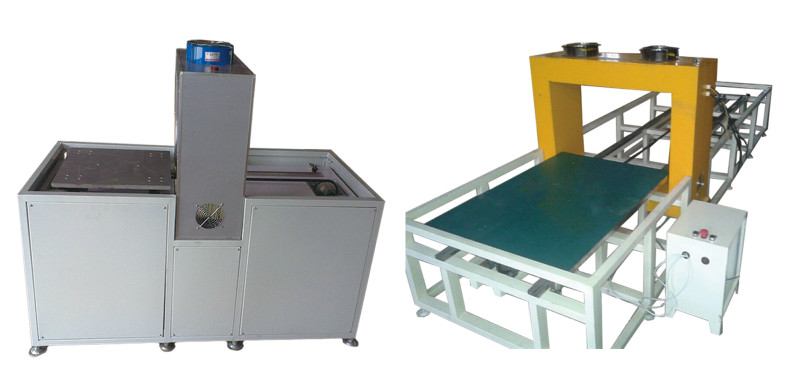

Car-type demagnetizer is a coil through demagnetizer. According to the principle of electromagnetic induction, the optimum design of magnetic circuit is carried out. More design ideas come from the actual requirements of the factory. The gradient magnetic field design has good demagnetization effect, reasonable selection of component parameters, high reliability and stability.
Vehicle demagnetizer is a coil-through demagnetizer that uses full-wave current waveform to demagnetize. Therefore, it has no interference to the power grid, low power consumption and strong anti-interference ability. It is widely used in demagnetization of magnetic products, workpieces and devices (such as bearings, gears, dies, automotive parts) after mechanical processing.
The demagnetizer cooperates with the trolley conveyor, which has higher efficiency, more convenient operation and adjustable conveying speed in a certain range, ensuring the safety of operation and demagnetization effect.
2. Characteristics:
The demagnetizer has reasonable magnetic circuit parameters, low power consumption, power saving function of demagnetizer tape, which increases the durability of the product, saves energy, and has good magnetic induction and demagnetization effect in demagnetization area.
Demagnetizer with leakage protector has higher operation safety.
There are small light indication, external alarm light indication and demagnetizer working status is obvious.
3. Technical Indicators
Scope of application: magnetic metal steel parts, steel pipes, bearings, workpieces, devices, dies, etc.
Demagnetization Voltage (V): ~380V
Demagnetization time (s): 5-30 (different length of workpiece, different time)
Demagnetization Current (A): Customized according to workpiece
Degaussing workpiece: unlimited length
Residual magnetism: < 0.2mT (demagnetization magnetic field: > 35MT)
Working power supply: ~380V/50Hz (two-phase three-wire system)
|
Model |
Inner diameter |
|
|
Demagnetizing |
|
B(mm) |
H （mm） |
|
frequency control |
|
TCK-8/1000L |
300 |
100～150 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-10/1200L |
300 |
150～200 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-15/1500L |
350 |
200～250 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-18/1500L |
400 |
250～300 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-20/2000L |
500 |
300～400 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-25/2000L |
600 |
400～500 |
0～8 |
|
～380V |
≥300Gs |
|
TCK-30/2500L |
700 |
500～600 |
0～8 |
|
～380V |
≥300Gs |
|
More specifications can be customized. TEL: 0510-88233906 18961518566 QQ：582785275 |
|
