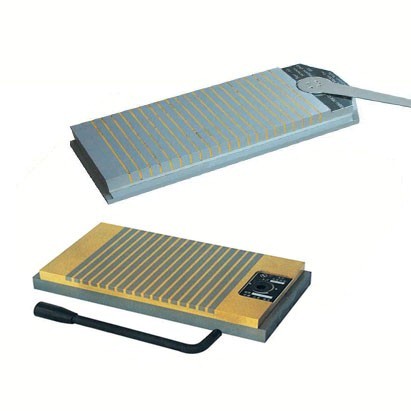

Ultra-thin permanent magnet chuck
Product name：Ultra-thin permanent magnet chuck
Product performance：Ultra-thin permanent magnet chuck is suitable for projector, EDM, high-speed micro-cutting, grinding machine, scraping, benchmarking, EDM, etc. The base structure is made of stainless steel material, which can be long-term rust-proof, corrosion-proof, sealing structure can be waterproof, the overall height is very low, and can maximize the processing height of equipment.
Product specification：
|
Model |
British Standard |
size mm |
(mm) |
(N/cm2) |
Net WT/Kg |
Overall size(cm) |
|
L |
W |
H |
|
X41 150 × 300 |
6 × 12 |
300 |
150 |
28 |
8+2 |
≥ 80 |
11 |
38.5 × 25 × 9.5 |
|
X41 150 × 350 |
6 × 14 |
350 |
150 |
35 |
8+2 |
≥ 80 |
13 |
43.5 × 25 × 9.5 |
|
X41 150 × 400 |
6 × 16 |
400 |
150 |
40 |
8+2 |
≥ 80 |
16 |
49 × 25 × 11 |
|
X41 150 × 460 |
6 × 18 |
460 |
150 |
40 |
8+2 |
≥ 80 |
17.5 |
54 × 25 × 11 |
Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.
More specifications can be customized. |
